YZW360

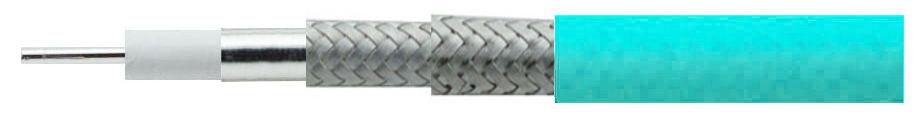

結構特性Structure Characteristics

Structure Characteristics

 Structure

 Item

 Standard Value

 Inner Conductor

 Material

 Silver Plated Copper

 Construction (mm)

1/0.53

 Nom.Dia (mm)

0.53

 Insulation

 Material

 PTFE

 Nom.Dia (mm)

1.68

 Inner shield

 Material

SC Foil

 Nom.Dia (mm)

1.88

 Innerlayer

 Material

Round Silver Plated Copper Braided Wire

 Nom.Dia (mm)

2.25

 Outer shield

 Material

Round Silver Plated Copper Braided Wire

 Nom.Dia (mm)

2.65

 Jacket

 Material

High Performance Thermoplastic Elastomer

 Nom.Dia (mm)

3.56



電性能參數

 Item

 Standard Value

Attenuation and Power handing@25℃&Sea Level

 Impedance(Ω)

50

Frequency (MHz)

Attenuation  (dB/100m)

Power handing  (W)

Capacitance(pF/m)

95

0.5

46.47

288

1

66.57

201

Velocity of Propagation

70%

3

119.00

112

4

138.98

96

Max Operating Frequency(GHz)

61

6

173.43

77

8

203.38

66

Screening Effectiveness(dB)

>110

10

230.47

58

12

255.52

52

Dielectric Withstanding Voltage(V@DC)

1000

18

322.60

41

26.5

405.03

33

Phase Change VS Bending(°/GHz)

±0.3

40

519.35

26

K1

63.64829396

Phase Change VS Temperature@(-45~+85)℃

N/A

K2

2.919947507

IL=K1*√FMhz+K2*FMHz



機械和環境性能

Mechanical &Environmental Characteristics

 Replaceable Type


Min Bending Radius (Static)

9.5 mm






Min Bending Radius (Dynamic)

19.0 mm






Weight

28 g/m






Operating Temperature

 -55~ +125℃
